Cast basalt lined steel pipe

Cast basalt lined steel pipe is composed by lined with cast basalt pipe, outside steel pipe and cement mortar filling between the two layers. It combines the advantages of cast basalt and steel pipe, wear resistance, corrosion resistance, anti-high-pressure, transportation and easy installation. Water transport in plant ash and metal mine tailings pipeline hydraulic conveyance system appling this product can life up to 30 years. Cast basalt lined steel pipe is divided into straight tube, elbow, tee, reducer pipe.

Cast basalt lined steel pipe is consist of steel pipe, cast basalt pipe and the concreteness of cement mortar.

Download Cast basalt lined steel pipe

Cast basalt lined steel pipe

Cast basalt lined steel pipe is made with lined cast basalt pipes, coat steel pipe and the cement mortar filling between the two layers, it sets the wear resistance and corrosion resistance of cast stone pipe, the toughness of the steel pipe and the consolidation of the cement mortar in one. Greatly improve the product's ability of adapting various complicated working condition. At the same time using cement mortar as filling material, can make the pipe inner surface in alkaline medium, so that the surface of the steel pipe will produce a purified film to prevent corrosion. Cast basalt lined steel pipe is not only resistant to wear and corrosion, against high pressure, but also convenient and safe to transport.

The nominal diameter series of cast basalt lined steel elbow pipe is the same as the cast basalt lined steel straight pipe , the turning radius and central Angle can be made according to the requirements of customers.

The technical parameters of the coat steel of cast basalt lined steel pipe according to the operating pressure of the pipeline system to determine.

After 30 years of practical use proved cast basalt lined steel pipe is a reliable and effective combination of wear—resistant materials. Be used in a variety of transportation of corrosive materials in working condition.

Main Specification Of Cast Basalt Lined Steel Pipe
Cast Basalt Pipe DN
(mm)
Standard Steel Pipe OD
(mm)
Cast Basalt Thickness
(mm)

Length
(mm)

80 159 25 4000
100 168 17.5

20
4000
6000
8000
125 195
150 219
175 245 6000
8000
10000
12000
200 273
225 300
250 325
275 345
300 377
350 426
400 478 20
25
450 529
500 600 25
550 650
600 720 30 6000
650 770
700 820
750 870
800 920

Other specifications of cast steel pipe lined with basalt can be manufactured according to customer technical requirements. Suitable for large-diameter basalt lining steel pipes with a nominal diameter greater than 800mm. Generally, according to the running status of the pipeline, different cement is used to fix the basalt brick inside the finished steel pipe to complete the basalt lining steel pipe. Its advantages are good wear resistance, wide range of use, basically not limited by the size of the pipeline and low cost of pipeline installation.

Comparision Chart

Comparison of Ceramic lines with few other materials under standard conditions :

Material
Thickness(mm)
Approx life ( Months )
Mild Steel
10
3-5
Cast Iron
20
6-8
Ni-Hard
20
12-14
Cast Basalt
30
20-25
Ceramic
10
35-40

Cast basalt lined pipes and fittings

Cast basalt pipe can be divided into straight pipe, elbow, three-way (four-way) pipe and variable diameter pipe, etc.

The excellent performance of cast basalt lined steel pipe is that it sets tenacity of steel pipe, abrasive resistance of cast basalt pipe, concreteness of cement mortar in one.

This greatly improves the products adaptive capacity in complicated operation conditions. At the same time. cement mortar is selected as the filling material and this can make the inside surface of steel pipe in alkali mediums. So the surface of steel pipe generates purifying films. These films can prevent being rusted.

Cast basalt lined steel pipe with flange

Flange connection is one kind of common pipeline installation connections.

Cast basalt lined steel pipe tee

Cast basalt lined steel pipe tee

Cast basalt lined steel pipe elbow

Cast basalt lined steel pipe elbow

Cast basalt lined steel pipe bend with loose flange

Cast basalt lined steel pipe bend with loose flange

Cast basalt lined pipe elbow with flange

Wear protective material available include: cast basalt, zirconia ceramic, alumina ceramic, silicon carbide ceramic hard commie and SC - Wearstop.

Cast basalt lined pipe elbow with flange

Customize painting of cast basalt lined straight pipe

Customize painting of cast basalt lined straight pipe

Cast stone pipe

Cast stone pipe

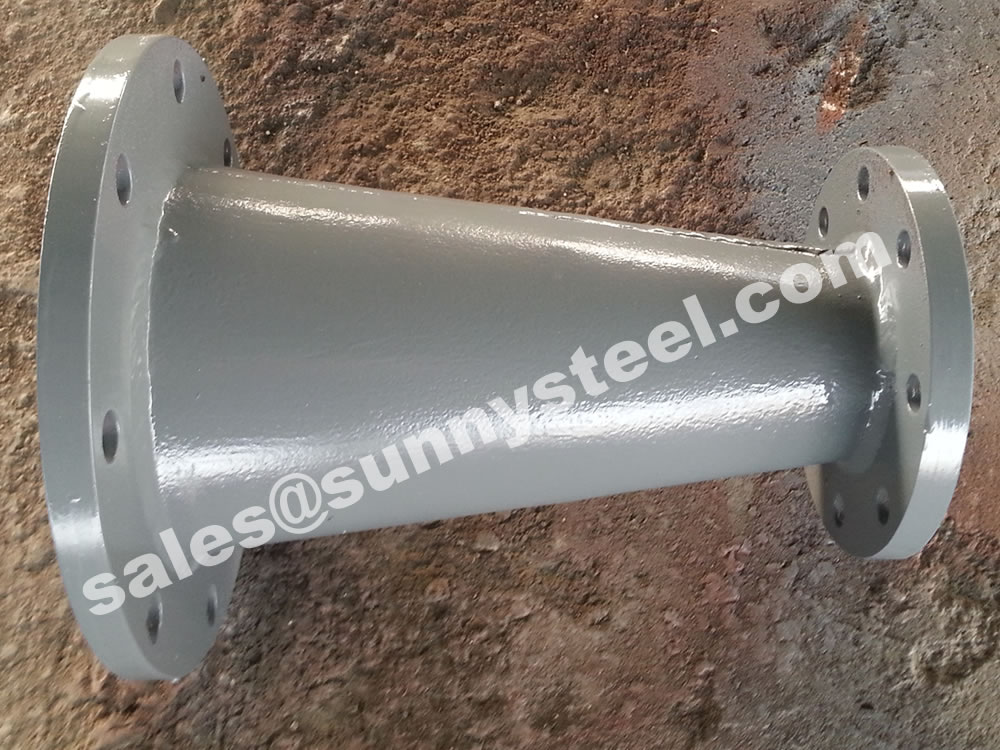

Cast stone pipe reducer

Cast stone pipe reducer


Cast basalt

Cast basalt is a kind of silicate crystalline material after producing and processing, it made of natural rock (basalt, diabase and other basite) or some industrial waste as the main raw materials, by melting, casting, crystallization, annealing and other processes.

Cast basalt have an excellent performance of high abrasive and high corrosion resistance. Cast basalt products mainly include cast basalt tile, cast basalt pipe, cast basalt lined steel pipe, clamp cast basalt pipe, cast basalt wear-resistant slip joints, cast basalt wear-resistant valves, cast basalt powder and various wear-resistant corrosion-resistant cement which use cast basalt powder as raw material. Cast basalt products have been widely used in industrial sectors which have serious wear and corrosion of parts and equipment, such as electric power, mining, metallurgy, coal, chemicals, construction and so on. Cast basalt is an indispensable non-metallic industrial new material in the development of modern industry.

Friction Resistance - As more material is passed over Cast Basalt it gets polished up thereby reducing friction further. Cast Basalt improves in service after getting polished. Wetting also improves its performance in practical applications.

Impact Resistance - Direct Impact Resistance at 90 degree is low like all other ceramics, but it can be increased with proper installation by reducing the angle of impact. Cast Basalt is the best wherever sliding abrasion exists. Moreover, external impact strength of composite basalt pipe (enclosed in M.S. Shell) is always more than that of bare Ni-hard Pipe.

Chemical Resistance Cast Basalt is almost absolutely acid/alkali resistant (except Hydrofluoric Acid) and hence corrosion resistant.
Weight and Sizes - Basalt Tiles are available in regular shape square of 200 x 200 x 30 mm thick, weighing approx. 90 kg/sq m; whereas bends and pipes are lined using Basalt

  • Cylinders of various standard sizes from 50NB upto 500NB.
  • Temperature - Cast Basalt withstands temperature up to 450 o C
  • Life - Life of basalt-lined pipe is estimated to be 7 to 10 times that of Cast Iron, and 3 to 4 times that of Ni-hard Steel.
Cast basalt lined steel pipe with flange

Centrifugal casting molding

Cast basalt pipe adopt magma centrifugal casting molding, then go through the tunnel kiln to annealing, and over a period of open storage to eliminating naturally the residual internal stress of cast basalt pipe


The Connection Of Cast Basalt Line Steel Pipe

Cast Basalt Lined Steel Pipe Can Connect With Flange, Quick Assembly Joints And Welding.

Flange Connection

Flange Connection Is One Kind Of Common Pipeline Installation Connections. By Two Pieces Of Flanges, Pipeline, Valve, Equipments Are Connected And It Forms A Tight Piping System. When Pipeline Pressure Is Larger, Flange Connection Is Priority Selection. Flanges Have Lots Of Different Sizes. Flange Size Is Determined According To Pipeline Normal Diameter And Pipeline Operation Pressure.

The parameters of the outside steel pipe will be decided according to the working pressure of the system. The connection of the pipes and fitting will be of flange connections, easy—flexible joint connection or by welding.

By two pieces of flanges,pipeline,valve,equipments are connected and it forms a tight piping system. When pipeline pressure is larger, flange connection is priority secection. Flanges have lots of differents sizes.

Flange size is determined according to pipeline normal diameter and pipeline operation pressure.

Straight pipe draws with flange

Welding & Beveled End

It Suits Short Distance Pipeline System Without Maintenance. It Is One Kind Of Common Installation Connections. It Requires Installation Personnel Higher Welding Ability. It Also Restricts By Welding Site, Distance, Welding Positions. Welding Connections Is Inconvenient In Later Maintenance.

Easy-Flexible Joint Connection

It Is One Of High Efficient And Rapid Installation Connection. I T Has The Below Characteristic: Easily Install And Disassemble, Fast Installation, Temperature Adjustable Compensation Function, Saving The Necessary Expansion In Long Pipeline. Easy-Flexible Joint Also Has Angle Compensation Characteristic. At Smaller Angle Turning Points, Easy-Flexible Joint Can Be Instead Of Bends And Adjust Angle.

Cast basalt lined steel pipe


Application

Cast Basalt can be used for the lining of pipework, chutes, bunkers, cyclones, and hoppers. It has become the global standard in areas such as ash slurry pipework, often used at fossil-fuel power stations. It is an all-round cost-effective and adaptable lining material that extends the life of equipment in pipe or tile form where affected by erosion.

Cast Basalt is well-proven in a variety of industries as a cost-effective, long-lasting lining material used to extend the operating life of equipment manufactured or lined with lower-wearing materials such as steel, cast iron, rubber, and polyurethane.

Cast basalt lined steel pipe, as both a wear—resistant and corrosion—resistant materials, the transport properties of wear or corrosion of materials, after thirty years of practical verification, cast basalt lined steel pipe can be well done.

Cast basalt is also used in cement plants for making air separators, chain conveyor, silica hoppers, nozzles, coal hoppers, cement hoppers, cyclones, raw mill ducts, chutes, thick slurry lines, mixers, grate cooler housing, coal ventury etc.

  • Tailings pipeline
  • concentrate pipeline
  • pipeline of transporting ore
  • pipe of transporting ash and residue in electric power station
  • pipe for transporting coal—water
  • pipe of sending sand by wind power
  • The concentration of slurry chute
  • edge—milling machine
  • disk feeder
  • slurry chutes
  • blast flush fines chute
  • blast furnace slag ditch
  • raw ore chute
  • funnels of autogenously mill
  • classification return mines chute
  • overflow launder
  • coke—conveying chute
  • saturator
  • acid separator
  • cyclone separator
  • sand mixed machine
  • punch mine ditch in mining industry
  • storage tank mine blast, coke funnel
  • all kinds of chutes, funnels, storage bin andso on.
  • load and unload material chute in fire—resistant industry
  • centrifugal concentrator punch mine launder

Cast Basalt Composite Pipes Used for Years

  • hydro cyclone
  • precipitator
  • pickling tank
  • slag conveyor
  • mixing machine downhill plate
  • conveying equipments need wear protection

Packaging and delivery of cast basalt products

Cast basalt pipe adopt foam packaging, then in accordance with the specifications to put them into wooden cases, sometimes them can be directly loaded into the compartment or container.

Delivery

Cast basalt lined pipe elbow with flange

Cast basalt lined pipe elbow with flange

Customize cast basalt lined pipe bend

Cast basalt lined steel pipe are packed in container

Cast basalt lined steel pipe are packed in container

Abrasion Resistant Pipe Solutions

Conveying highly abrasive materials, steel piping systems are under constant attack often over long distances.

Q&A

Because the outer surface behaves like mild steel, the product can be cut and welded with proper procedure in the field, configured into a variety of fittings, and can accept the standard end options of flanges, weld rings and couplings.

Warranty

We are Quality Department tests and ensures all of our products are 100% inspected unreported. To an offer we customers additional corps of mind, all our products carry a 24-month warranty against defects or faulty workmanship.We fluid-flow products such as pipe and fittings, chokes, orifice plates, etc, carry a warranty against, erosion, defects, and/or faulty workmanship.

The warranty is determined to each creator and the maximum duration maximally in service. Should any of the RS fail within the warranty period, We'll replace or repair the defective product (s) at No. end user. Please contact the Sunny steel for details on the How to obtain a warranty for our products.

Inspections

As part of our quality regimen, 100% of incoming raw materials, semi-finished products, as well as finished products are thoroughly inspected prior to being entered into our inventory. We have established multiple hold points throughout fabrication as well as a comprehensive final inspection for all products.
