Bi-metal clad lateral wye

Pipe wyes are used to to allow one pipe to join another pipe at some degree or angle.

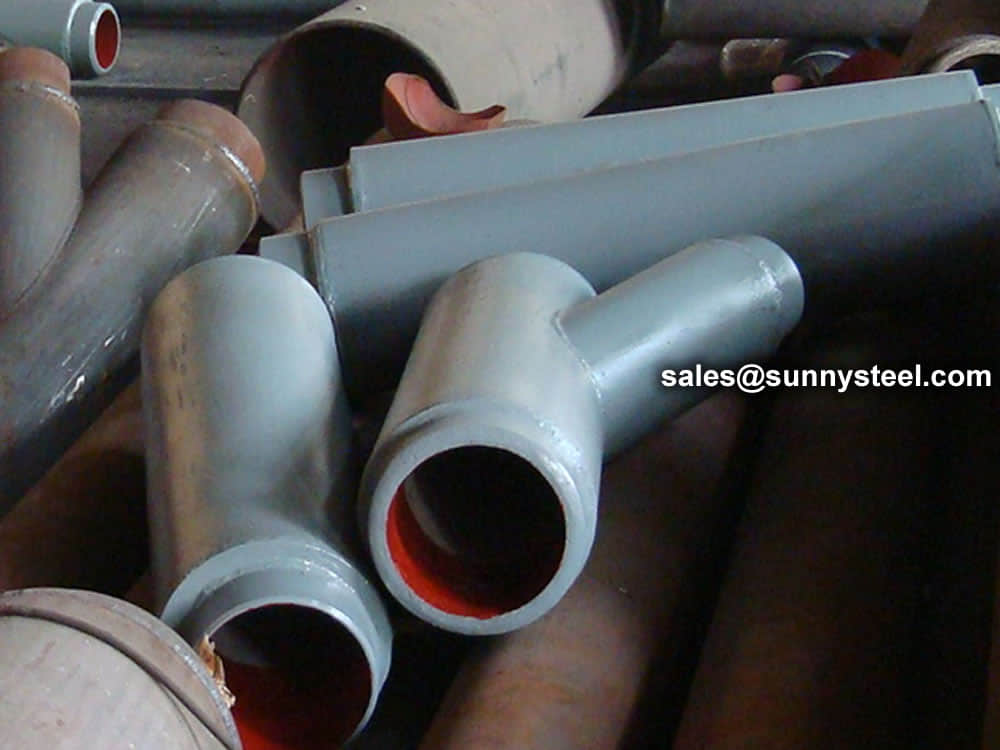

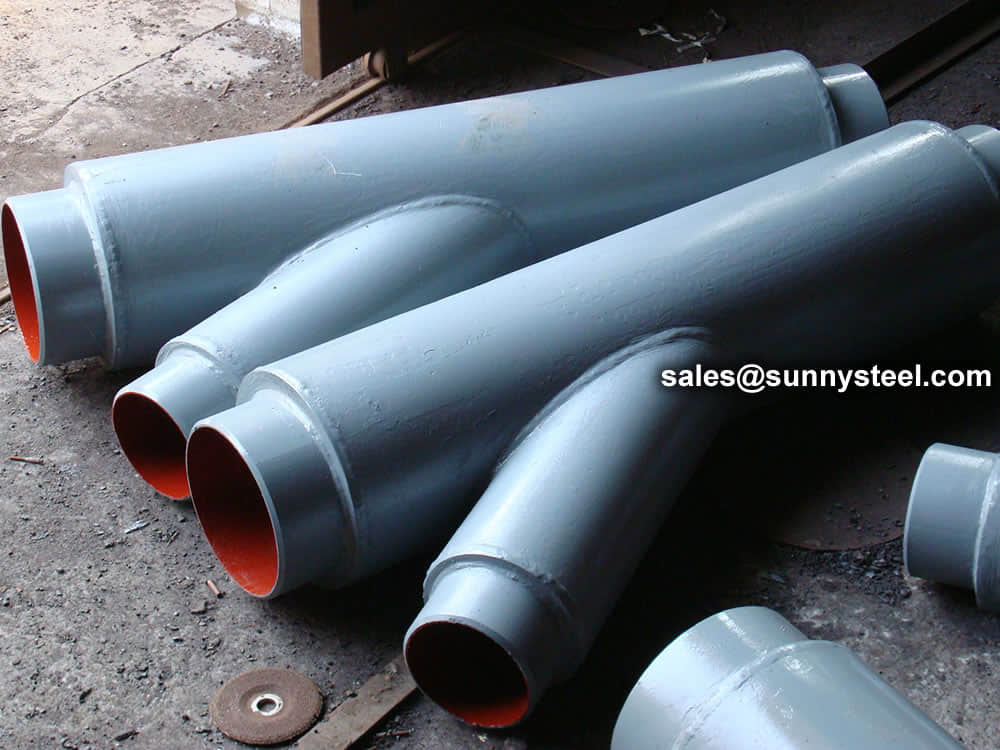

Bi-metal clad lateral wye

Bi-metal clad lateral wyes are used to to allow one pipe to join another pipe at some degree or angle.

Outer of straight pipe is common steel pipe, cladding realized by forming high chromium lining via centrifugal forming technique.

Bi-metal clad y type tee

Manufacturing Process of Bi-metal clad lateral wye:

Bi-metal clad lateral wye are cast with mold vanishing vacuum suction casting cladding process. Outer of straight pipe is common steel pipe, cladding realized by forming high chromium lining via centrifugal forming technique.

Outer of bend uses hot-bending bend and lining is cast with high-chromium cast iron. Bends and other profile sections can be cladded in whole and this process has changed the traditional practice to fabricate bend and other profile sections by drawing polyline without changing flow pattern of material inside piping, greatly reducing conveyance resistance of material.

Advantages Compared with Traditional Wear Resistant:

1. Good wear-resistance, giving full play to wear-resistance of high chromium cast iron.

2. Withstanding high pressure:
Bimetal cladding pipe and bend can be used for any pressure rating. Close bonding of outer and lining by adopting special process make cladding interlayer molten-joint to ensure reliable operation.

3. Good mechanical impact and thermal impact resistance property.

4. Convenient in connection for installation: Bi-metal clad lateral wye can be cut and welded as you like.

Physical Properties of Bi-metal clad lateral wye:
Flexure
Strength
Tensile
Strength
Elongation Cross Section
Stretch Ratio
Impact
Toughness
Hardness
of Wearable
Layer
Hydrostatic
Testing
Pressure
MN/㎡ MN/㎡ % % J/c㎡ HRC Mpa

>610 >700 5 5.1 >15 >38 5.6-12.9

Application Fields

We have a team of experienced professionals with years of experience in manufacturing.

Abrasion Resistant Pipe Solutions

Conveying highly abrasive materials, steel piping systems are under constant attack often over long distances.

Q&A

Because the outer surface behaves like mild steel, the product can be cut and welded with proper procedure in the field, configured into a variety of fittings, and can accept the standard end options of flanges, weld rings and couplings.

Warranty

We are Quality Department tests and ensures all of our products are 100% inspected unreported. To an offer we customers additional corps of mind, all our products carry a 24-month warranty against defects or faulty workmanship.We fluid-flow products such as pipe and fittings, chokes, orifice plates, etc, carry a warranty against, erosion, defects, and/or faulty workmanship.

The warranty is determined to each creator and the maximum duration maximally in service. Should any of the RS fail within the warranty period, We'll replace or repair the defective product (s) at No. end user. Please contact the Sunny steel for details on the How to obtain a warranty for our products.

Inspections

As part of our quality regimen, 100% of incoming raw materials, semi-finished products, as well as finished products are thoroughly inspected prior to being entered into our inventory. We have established multiple hold points throughout fabrication as well as a comprehensive final inspection for all products.
