Stainless heat exchanger tube

Stainless heat exchanger tube in an extensive range of austenitic stainless steels, duplex stainless steels, nickel alloys, titanium and zirconium, suitable for all types of heat exchangers, such as seawater coolers, condensers, evaporators, heaters and reheaters.

Heat exchanger tube in an extensive range of austenitic stainless steels, duplex stainless steels, nickel alloys, titanium and zirconium, suitable for all types of heat exchangers, such as seawater coolers, condensers, evaporators, heaters and reheaters.

Heat Exchanger Tube Main Testing Terms and Procedure Accoring to ASTM A213 and ASTM A1016, EN 10216-5:

In order to meet the demand for rapid delivery, we have a strip stock with both standard and special grades of steel in the most common thicknesses.

We offer the market's widest selection of stainless steel grades and has extensive experience of manufacturing heat exchanger tubes

Surface protection: Unless otherwise stated in order tubes are delivered with inner and outer surfaces temporarily protected with a film of light mineral oil.

Tubes ends: The tubes are supplied plain, square cut and on request the tubes can be deburred.

Application:

Pipes are made from more than 20 steel grades of various corrosion resistance and are intended for application in conditions of a wide range of corrosion environments and temperatures in heat exchanger.

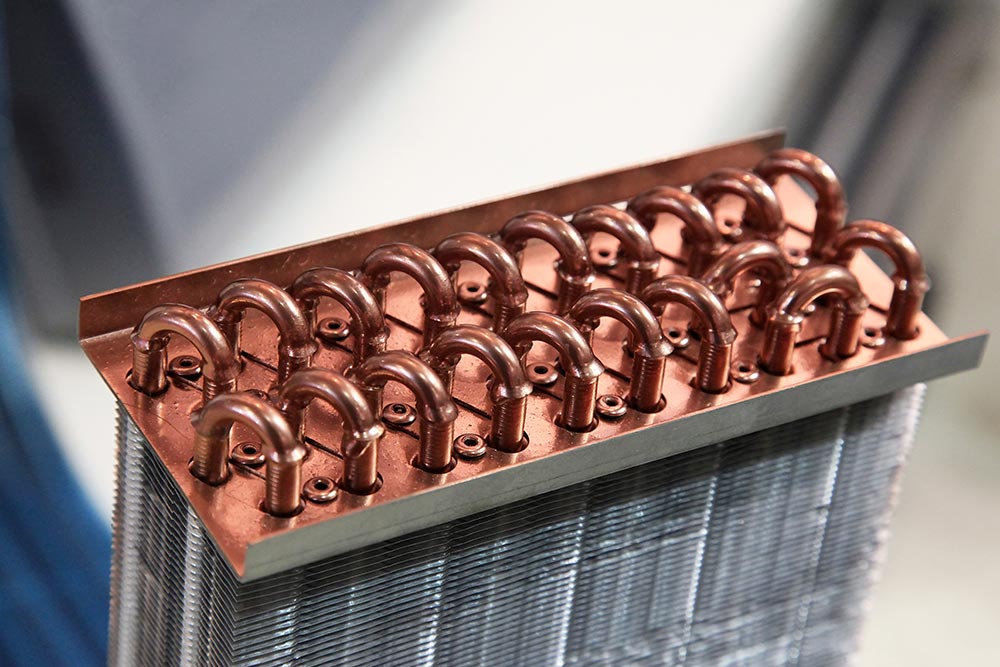

U-tube heat exchanger

ASTM A556M-88/ASME SA556 Seamless cold drawn steel feedwater heater tubes 1

(ASTM A 556 ]M - 88 / ASME 556 /ASTMA556M-88/ASME556)

ASTM A556 is a brief summary of the referenced standard. It is informational only and not an official part of the standard; the full text of the standard itself must be referred to for its use and application. ASTM does not give any warranty express or implied or make any representation that the contents of this abstract are accurate, complete or up to date.

Feedwater Heater Tubes
Standard:ASME SA556 Chemical Compostion
Grade C % Si % Mn % P % S %
B2 0.27 max 0.10 min 0.29-0.93 0.030 max 0.030 max
C2 0.30 max 0.10 min 0.29-1.06 0.030 max 0.030 max


Mechanical Properties

Grade Tensile Strength MPA Yield Strength MPA Hardness HRB
B2 410 min 260 min 79 min
C2 480 min 280 min 89 min

Each U bend tube of our range is rigorously quality checked by our team of talented professionals on every stage of production to deliver the clients defect free best quality products. These U bend tubes can be custom designed in various diameters as per the requirements of our clients.
