Rubber lined pipe

Rubber lined pipe

Rubber lined pipe is a type of piping system where the inner surface of the pipe is lined with rubber.

The rubber lining provides protection against abrasion and corrosion, making it suitable for various industrial applications.

Rubber Lining Options

For fluid streams with a high solids content or aggressive chemical make-up, rubber lined steel pipe has traditionally been a very effective solution. There are a variety of rubber compounds and durometers available. While other compounds may be available, noted below are common solutions for mining applications.

What Is Rubber Lining?

Rubber lining is the process of applying rubber sheets or extruded tubes to the internal surface of steel pipes. The proper application of rubber lining will extend your equipment life and minimise unscheduled maintenance.

What is lined piping?

These are the metal surrounds of pipe and fittings, the fluoropolymer used to line them and the processing method (and thereby the type of fit between the metal and the lining). The metal surround provides the mechanical strength for the system, the lining its corrosion performance.

Steps for Creating a Rubber Lined Pipe

Our plant carefully considers temperature, chemical composition and concentration of the materials being conveyed to determine the best compound for your rubber pipe.

  • Fabricate the pipe
  • Inspect the Weldment
  • Prepare the Substrate (Blasting)
  • Apply Adhesive System
  • Make a Rubber Tube
  • Stitch the Tube Seam
  • Insert the Tube into the Pipe
  • Apply the Flange Faces
  • Vulcanize (Cure) the Lining
  • Inspect & Spark Test the Lining
  • Blast Unlined Surfaces
  • Paint the Unlined Surfaces
  • Final Inspection

With the proper rubber pipe lining, a pipe can withstand years of abrasive and corrosive service conditions. Rubber compounds are engineered for chemical resistance to protect your pipe from the effects of acids and oxidizing agents.

Rubber Lining Attributes:

Pipe size is never a concern when working with Industrial Rubber. An innovative application process makes it possible to rubber line pipe ranging from 3 inches in diameter up to the largest diameter manufactured.

Rubber lined pipe fittings

Soft Natural Rubber

  • Lowest Cost
  • Excellent abrasion
  • tear resistance
  • Good general chemical resistance
  • Stable in cold weather or rapid temperature changes
  • 40-60 durometer typical
  • Pure Gum Based

Hard Natural Rubber

  • Moderate cost
  • Excellent chemical
  • permeation resistance
  • Heat resistant over 200˚F
  • Physically tough
  • 60-90 durometer typical
  • Ebonite based

Chloroprene/Butyl/Hypalon Rubber

  • More expensive
  • Good to excellent chemical
  • ppermeation resistance
  • Heat resistant over 200˚F
  • Stable in cold weather
  • rapid temperature changes
  • Oil Resistant (Hypalon)
  • 40-60 durometer typical

Since most Rubber Lined Pipe applications are for transporting abrasive slurries, we test our materials for abrasion resistance to ensure we are providing you with the best product suited to your application.

We install rubber linings in pipe as small as 1½” dia. and as large as 144″ dia. We vulcanize (cure) the lining installed in pipe up to 88″ diameter (flanged) in our autoclaves. Curing in an autoclave produces superior adhesion properties over other processes (i.e. atmospheric and internal steam). Autoclave curing also maximizes the lining life in the pipe versus other methods.

We can fabricate and rubber line your pipe with a minimum lead-time. All Rubber Lined Pipe orders receive the same attention, whether it’s a large order, or a single piece.

What is the difference between PTFE lined pipe and rubber lined pipe?

Rubber lined pipe fittings

Rubber lined pipe fittings

PTFE lined pipe fttings

PTFE lined pipe fttings

It is vital to recognize the important differences between rubber-lined pipes and PTFE-lined pipes. PTFE-lined pipes are often used in situations where heat is extreme, whereas rubber-lined pipes are typically used at less heat temperatures.

PTFE-lined pipes are made of stainless steel and are able to withstand very high temperatures. A leak or explosion could result in a fire or explosion in the chemical industry or other sectors. These pipes have an extremely low coefficient of friction and low thermal expansion which means they can stand against all changes in environment temperature without warping or cracking or containing any damages. These pipes are very light in weight also resistant to corrosion and chemicals which can damage the pipes. These PTFE lined pipes install in tight spaces like under or above floors as they are very light in weight.

Rubber-lined pipes are typically made of PVC plastic, but can also be made from other materials such as glass fibers or metal tubes lined with rubber. These pipes have a higher coefficient of friction than metal ones do; this means that they will not slip against each other as easily when pushed together (like when you’re trying to push two pieces of paper together).

Uses:

The manufacturer uses PTFE-lined pipe because of the following:

It’s non-flammable, which makes it safer than other types of pipelines. It can withstand higher temperatures than rubber rather than causing damage to the pipe or lining because it is more heat resistant. In wastewater systems, high concentrations of chemicals will not corrode this stainless steel due to its resistance to acids and bases.

The manufacturer uses rubber lined pipe because of the following:

They have low maintenance requirements since they do not require any special cleaning or maintenance procedures during operation. They are known for their durability since they can withstand harsh conditions without breaking down easily. They have high resistance levels against pressure fluctuations within a system due to their ability to withstand constant pressure changes without leaking.

Rubber lined composite steel pipe

Rubber lined composite steel pipe is a type of piping system where the inner surface of the pipe is lined with rubber, while the outer structure is made of composite steel.

Rubber lined short pipe

Rubber lined short pipe

Rubber lined short pipe

Rubber lined short pipe

Rubber lined short pipe

Rubber lined short pipe

Rubber lined short pipe

Rubber lined short pipe

Rubber lined short pipe

Rubber lined short pipe

Rubber lined straight pipe

Rubber lined straight pipe

Rubber lined pipe elbow

Rubber lined pipe elbow

Rubber lined pipe elbow

Rubber lined pipe elbow

Rubber lined pipe elbow

Rubber lined pipe elbow

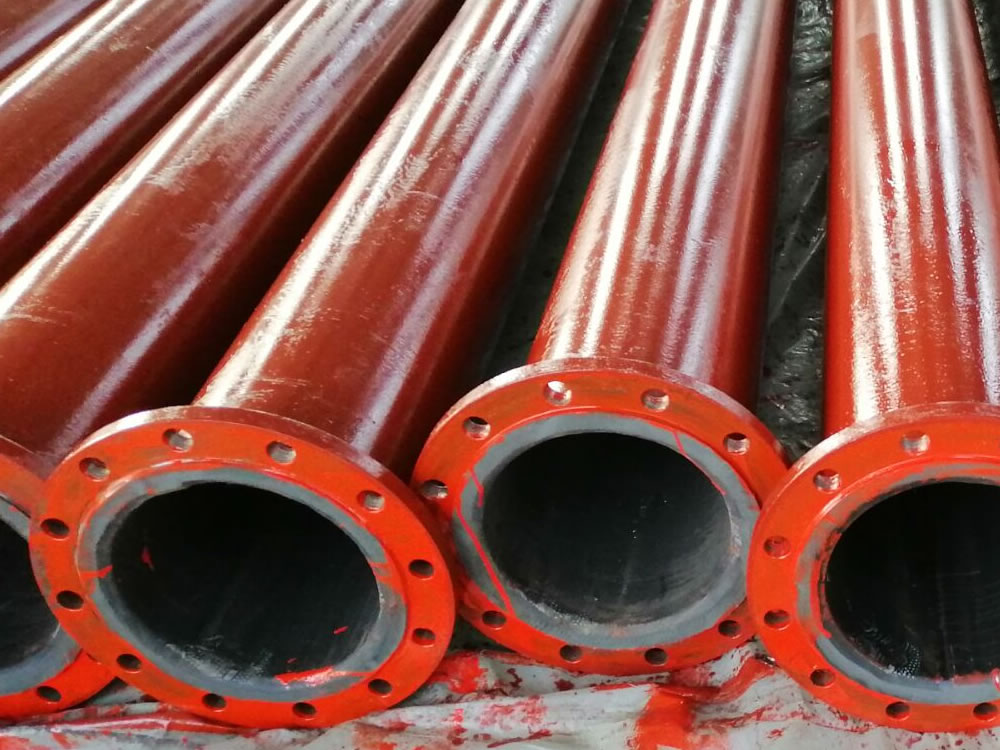

Small diameter rubber lined pipe

Small diameter rubber lined pipe

Small diameter rubber lined pipe

Small diameter rubber lined pipe

Rubber lined pipe tee

Rubber lined pipe tee

Rubber lined pipe tee

Rubber lined pipe tee

Rubber lined pipe tee

Rubber lined pipe tee

Rubber lined pipe tee

Rubber lined pipe tee

ERW pipe coating

ERW Pipe coating

Pipeline coating is the most consistent and successful solution for protecting ERW pipes from corrosion, from moisture, other harmful chemicals.

Therefore pipe anti-corrosion layer is an important barrier to prevent soil erosion. A well-known foreign scholar put forward" 3PE france protective layer", so far, anti-corrosion methods is widely used.

Coated pipes offer high resistance to corrosion on pipes and provide many benefits such as:

1. Increased Flow Capacity – A coating on pipes helps provide a smoother surface thus improving gas and liquid flow within pipes.

2. Reduced Cost – The pipeline coating increases the pipes durability so they can be deployed with minimum maintenance cost even in the harshest environments.

3. Lower energy usage – Various studies have shown that pipelines that are internally coated use less energy for pumping and compression of products through pipes. This helps in increased saving over time.

4. Clean delivery of products – The inhibitors used for the protection products can also be minimized by the use of coated pipes for delivery of products.

Thus, coating of pipelines can help you in reducing your maintenance cost and at the same time providing a corrosion free reliable protection.

Basic functions of erw pipe coating

  1. making the surface of ERW steel pipes free from electrochemical corrosion of the soil medium, the basic physics of bacterial corrosion protection.
  2. resisting the move of the soil medium creep stress, static stress and abrasion force method and structure of the basic machinery protection.

The basic principles of urban gas pipeline coating selection:
